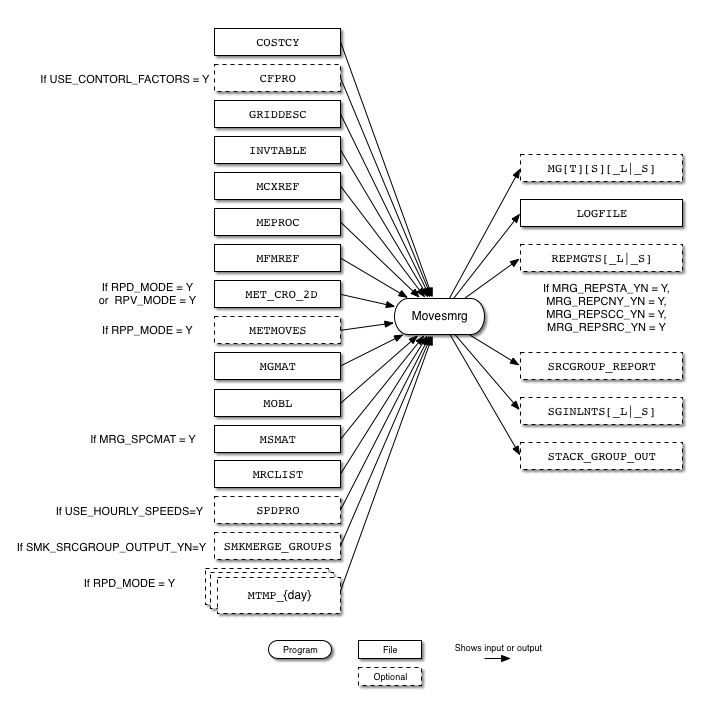

Figure 6.8, “Movesmrg input and output files” shows the input and output files for the Movesmrg program. The input files are the country, state, and county codes file (COSTCY), the grid description file (GRIDDESC), the inventory data table (INVTABLE), the reference county fuel month file (MFMREF), the list of emission process and associated pollutants file (MEPROC), the reference county cross-reference file (MCXREF), the list of emission factors files by reference county file (MRCLIST), the meteorology files (MET_CRO_2D), the gridding matrix from Grdmat (MGMAT), the inventory file output from Smkinven (MOBL), the speciation matrix from Spcmat (MSMAT_L or MSMAT_S), the Met4moves output file for SMOKE (METMOVES =SMOKE_OUTFILE), the MOVES-based lookup tables (RPD, RPV, and RPP), and the daily hour VMT files from Temporal (MTMP_(day)). Note that MET_CRO_2D, METMOVES, and MTMP_(day) are optional files that are included only in certain situations.
Movesmrg outputs a model-ready emissions file MGTS_L or MGTS_S, a report file REPMGTS_S, and a log file LOGFILE.
When using source apportionment (see Section 4.4.24, “Output source apportionment data”), Movesmrg will also read the source grouping file (SMKMERGE_GROUPS) and output the source group information STACK_GROUPS_OUT, the emissions for each source group SGINLNTS_L or SGINLNTS_S, and a source group report file SRCGRP_REPORT.
| File Name | Format | Description |
|---|---|---|
COSTCY |
ASCII | Country, state and county codes file |
CFPRO (optional)
|
ASCII | Control factor file |
GRIDDESC |
ASCII | Grid description file |
INVTABLE |
ASCII | Inventory data table |
MFMREF |
ASCII | Reference county fuel month file |
MEPROC |
ASCII | List of emission process and associated pollutants file |
MCXREF |
ASCII | Reference county cross-reference file |
MRCLIST |
ASCII | List of emission factors files (i.e., RPD, RPV and RPP Lookup tables) by reference county file |
METLIST |
ASCII | List of MCIP meteorology files |
MGMAT |
ASCII | Gridding matrix from Grdmat |
MOBL |
ASCII | Inventory file output from Smkinven |
MSMAT_[L|S] |
ASCII | Speciation matrix from Spcmat |
METMOVES (=SMOKE_OUTFILE) (optional)
|
ASCII | Meteorology file from Met4moves |
MTMP_{day} |
ASCII | Daily hour VMT files from Temporal |
SMKMERGE_GROUPS (optional)
|
ASCII | Source apportionment groups |
SPDPRO (optional)
|
ASCII | Weekday and weekend hourly speed profiles |
-
MEMORY_OPTIMIZE_YN:: [default: Y]Allows Movesmrg to use less RAM memory. However, it will increase computational time of RPD_MODE and RPV_MODE runs.
-
Y: Runs Movesmrg in memory optimization mode.
-
N: Runs Movesmrg faster mode using high capacity of RAM memory.
-
-
MRG_BYDAY: [default: blank]String code that specifies which source category is to use a by-day approach for the hourly input files. It must be set to "M" for a Movesmrg to create an output file for each day.
-
MRG_GRDOUT_YN: [default: N]Determines whether Movesmrg produces a gridded output file.
-
Y: Read the gridding matrix produced by the Grdmat
-
N: Do not read the gridding matrix.
-
-
MRG_SPCOUT_YN: [default: N]Determines whether Movesmrg produces a speciated output file.
-
Y: Read the gridding matrix produced by the Spcmat
-
N: Do not read the gridding matrix.
-
-
MRG_REPCNY_YN: [default: N]Determines whether Movesmrg produces a report of emission totals by county
-
Y: Produce the report by Movesmrg
-
N: Do not produce the report
-
-
MRG_REPSTA_YN: [default: N]Determines whether Movesmrg produces a report of emission totals by state
-
Y: Produce the report by Movesmrg
-
N: Do not produce the report
-
-
MRG_REPSCC_YN: [default: N]Determines whether Movesmrg produces a report of emission totals by SCC
-
Y: Produce the report by Movesmrg
-
N: Do not produce the report
-
-
MRG_REPSRC_YN: [default: N]Determines whether Movesmrg produces a report of emission totals by source.
-
Y: Produce the report by Movesmrg. It will reset
MRG_REPCNY_YNandMRG_REPSCC_YNto N to avoid to outputing duplicate information into the report. -
N: Do not produce the report
-
-
If
MRG_GRDOUT_UNIT[default: units]String code that permits user to change the unit of the gridded output file.
-
If
MRG_TOTOUT_UNIT[default: units]String code that permits user to change the unit of the state/county total report file.
-
RPD_MODE:[default: N]Determines whether Movesmrg processes rate-per-distance emissions.
-
Y: Process rate-per-distance emissions
-
N: Do not process rate-per-distance emissions
-
-
RPV_MODE: [default: N]Determines whether Movesmrg processes rate-per-vehicle emissions.
-
Y: Process rate-per-vehicle emissions
-
N: Do not process rate-per-vehicle emissions
-
-
RPP_MODE: [default: N]Determines whether Movesmrg processes rate-per-profile emissions.
-
Y: Process rate-per-profile emissions
-
N: Do not process rate-per-profile emissions
-
-
USE_CONTROL_FACTORS: [default: N]Allows the user to apply control factor by region, SCC, pollutant, process mode, and month.
-
Y: Apply control factors to MOVES emission rates from MOVES lookup tables.
-
N: Do not apply control factor.
-
-
SMK_MVSPATH: [default: blank]Defines the temperature increment (in deg. F) for RPD lookup table to create combinations of min/max temperature bins
-
SMK_SOURCE: [default: blank]Sets the types of source category. It must be set to "M" for Movesmrg.
-
SMK_SRCGROUP_OUTPUT_YN: [default: N]Indicates if source apportionment emissions should be output
-
Y: Group sources and output source apportionment files
-
N: Do not perform any source apportionment processing
-
-
TEMP_BUFFER_BIN: [default: 0.0]Defines the temperature buffer value (°F). This value allows Movesmrg to cover the outside of min/max temperature range in
SMOKE_OUTFILEfrom Met4moves for Movesmrg RPP processing. IfTEMP_BUFFER_BINis set to 10.0, the original max temperature which is 90.0°F will be treated as 100.0°F, and minimum temperaure (=30°F) will be treated as 20.0°F internally in Movesmrg. Emission rates for those temperatures outside of original temperature range will share the ones from original max/min temperatures. -
TMPVNAME: [default: TEMP2]Name of temperature variable to read from the meteorology files for Movesmrg.
-
USE_HOURLY_SPEEDS: [default: N]Determine whether processes weekday/weekend hourly speed profiles or not.
-
Y: Process weekday/weekend hourly speed profiles
-
N: Do not process hourly speed profiles
-
| File Name | Format | Description |
|---|---|---|
MGTS[_S|_L] |
I/O API NetCDF | Model Ready Emissions File |
REPMGTS[_S|_L] |
ASCII | Report File |
LOGFILE |
ASCII | Logfile |
SGINLNTS[_S|_L] |
I/O API NetCDF | Emissions by source group, formatted as CMAQ in-line emissions data, produced if SMK_SRCGROUP_OUTPUT_YN is set to Y
|
STACK_GROUPS_OUT |
I/O API NetCDF | Source group information, produced if SMK_SRCGROUP_OUTPUT_YN is set to Y
|
SRCGRP_REPORT |
ASCII | Source group report file, produced if SMK_SRCGROUP_OUTPUT_YN is set to Y
|
