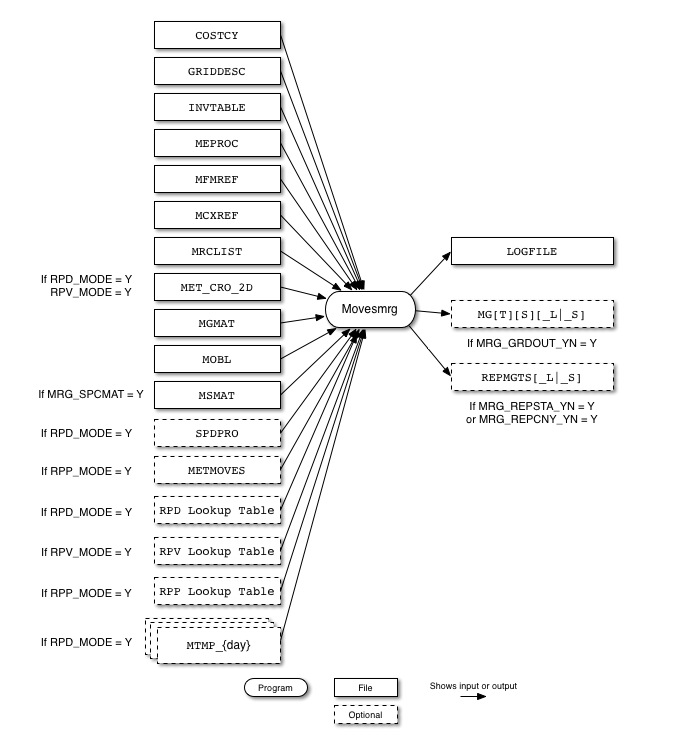

Figure 6.10, “Movesmrg input and output files” shows the input and output files for the Movesmrg program. The input files are the country, state, and county codes file COSTCY, the grid description file GRIDDESC, the inventory data table INVTABLE, the reference county fuel month file MFMREF, the list of emission process and associated pollutants file MEPROC, the reference county cross-reference file MCXREF, the list of emission factors files by reference county file MRCLIST, the meteorology files MET_CRO_2D, the gridding matrix from Grdmat MGMAT, the inventory file output from Smkinven MOBL, the speciation matrix from Spcmat MSMAT, the Met4moves output file for SMOKE METMOVES, the MOVES-based lookup tables (RPD, RPV, and RPP), and the daily hour VMT files from Temporal MTMP_(day). Note that MET_CRO_2D, METMOVES, and MTMP_(day) are optional files that are included only in certain situations.
Movesmrg outputs a model-ready emissions file MGTS_L or MGTS_S, a report file REPMGTS_S, and a log file LOGFILE.
| File Name | Format | Description |
|---|---|---|
COSTCY |
ASCII | Country, state and county codes file |
GRIDDESC |
ASCII | Grid Description File |
INVTABLE |
ASCII | Inventory data table |
MFMREF |
ASCII | Reference county fuel month file |
MEPROC |
ASCII | List of emission process and associated pollutants file |
MCXREF |
ASCII | Reference county cross-reference file |
MRCLIST |
ASCII | List of emission factors files by reference county file |
MET_CRO_2D(optional)
|
ASCII | MCIP meteorology files |
MGMAT |
ASCII | Gridding matrix from Grdmat |
MOBL |
ASCII | Inventory file output from Smkinven |
MSMAT |
ASCII | Speciation matrix from Spcmat |
METMOVES(optional)
|
ASCII | Met4moves output file for SMOKE |
MOVES Lookup Tables(RPD, RPV, and RPP)
|
ASCII | MOVES Lookup Tables (RPD, RPV, and RPP) |
MTMP_{day}(optional)
|
ASCII | Daily hour VMT files from Temporal |
-
MRG_BYDAY: [default: blank]String code that specifies which source category is to use a by-day approach for the hourly input files. It must be set to "M" for a Movesmrg to create an output file for each day.
-
MRG_GRDOUT_YN: [default: N]Determines whether Movesmrg produces a gridded output file.
-
Y: Read the gridding matrix produced by the Grdmat
-
N: Do not read the gridding matrix.
-
-
MRG_SPCOUT_YN:: [default: N]Determines whether Movesmrg produces a speciated output file.
-
Y: Read the gridding matrix produced by the Spcmat
-
N: Do not read the gridding matrix.
-
-
MRG_REPSTA_YN_YN:: [default: N]Determines whether Movesmrg produces a report of emission totals by county
-
Y: Produce the report by Movesmrg
-
N: Do not produce the report
-
-
If
MRG_GRDOUT_UNIT[default: units]String code that permits user to change the unit of the gridded output file.
-
If
MRG_TOTOUT_UNIT[default: units]String code that permits user to change the unit of the state/county total report file.
-
RPD_MODE:: [default: N]Determines whether Movesmrg processes rate-per-distance emissions.
-
Y: Process rate-per-distance emissions
-
N: Do not process rate-per-distance emissions
-
-
RPV_MODE:: [default: N]Determines whether Movesmrg processes rate-per-vehicle emissions.
-
Y: Process rate-per-vehicle emissions
-
N: Do not process rate-per-vehicle emissions
-
-
RPP_MODE:: [default: N]Determines whether Movesmrg processes rate-per-profile emissions.
-
Y: Process rate-per-profile emissions
-
N: Do not process rate-per-profile emissions
-
-
SMK_EF_MODEL: [default: MOBILE6]Name of the emission rate model to use. To use the MOVES model, it must be set to “MOVES”.
-
SMK_MVSPATH: [default: blank]Defines the temperature increment (in deg. F) for RPD lookup table to create combinations of min/max temperature bins
-
SMK_SOURCE: [default: blank]Sets the types of source category. It must be set to "M" for Movesmrg.
-
TMPVNAME: [default: TEMP2]Name of temperature variable to read from the meteorology files for Movesmrg.
