6.8.3. Files and Environment Variables

6.8.3.1. Input Files
6.8.3.2. Input Environment Variables
6.8.3.3. Output Files

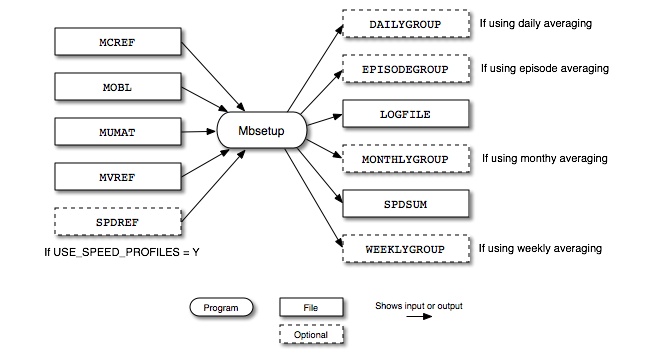

Figure 6.8. Mbsetup input and output files

Mbsetup input and output files

Figure 6.8, “Mbsetup input and output files” shows the input and output files for the Mbsetup program. The input files are the county cross-reference file (MCREF), the inventory file output from Smkinven (MOBL), the ungridding matrix file from Grdmat (MUMAT), the county settings file (MVREF), and the speed cross-reference file (only if USE_SPEED_PROFILES is set to Y).

Mbsetup outputs an ASCII listing of counties using day-average meteorology data (DAILYGROUP), week-average meteorology data (WEEKLYGROUP), month-average meteorology data (MONTHLYGROUP), or episode-average meteorology data (EPISODEGROUP). It also outputs a log file (LOGFILE) and a summary of speeds and road types (SPDSUM).

6.8.3.1. Input Files

File Name Format Description
MCREF ASCII County cross-reference file
MOBL SMOKE map Intermediate inventory file produced by Smkinven
MUMAT I/O API NetCDF Ungridding matrix from Grdmat
MVREF ASCII County settings file
SPDREF (optional) ASCII Speed profiles cross-reference file

6.8.3.2. Input Environment Variables

  • FULLSCC_ONLY: See description in Section 6.2.3.2, “Input Environment Variables”. In this context, this option affects cross-referencing for the SPDREF file by preventing left-7 SCC assignments.

  • SMK_SOURCE: See description in Section 6.2.3.2, “Input Environment Variables”.

  • USE_INVSPD_DEFAULT: [default: N]

    If USE_SPEED_PROFILES is set to Y, this variable determines if sources that do not have matching entries in the SPDREF cross-reference file should use inventory speeds.

    • Y: Use inventory speed as default for sources that do not have matching entries in the SPDREF file

    • N: Print a list of sources that do not have matching SPDREF entries and exit with an error

  • USE_SPEED_PROFILES: [default: N]

    Indicates whether hourly speed profiles should be used instead of speed data from the inventory.

    • Y: Use hourly speed data; requires SPDREF cross-reference file

    • N: Use speed data from the mobile inventory

6.8.3.3. Output Files

File Name Format Description
DAILYGROUP (optional) ASCII Listing of counties using day-average meteorology data
EPISODEGROUP (optional) ASCII Listing of counties using episode-average meteorology data
LOGFILE ASCII Log generated from executing Mbsetup
MONTHLYGROUP (optional) ASCII Listing of counties using month-average meteorology data
SPDSUM ASCII Summary of speeds and road types associated with each source
WEEKLYGROUP (optional) ASCII Listing of counties using week-average meteorology data
