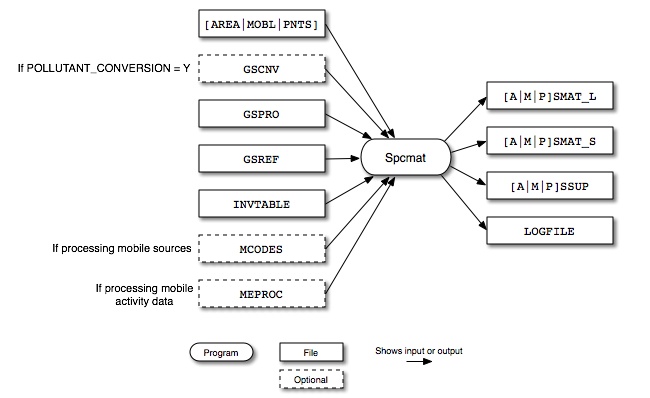

Figure 6.22, “Spcmat input and output files” shows the input and output files for the Spcmat program. The input files include the inventory file output from Smkinven (AREA
, MOBL
, or PNTS
), the optional pollutant conversion file (GSCNV
), the speciation profiles file (GSPRO
), the speciation cross-reference file (GSREF
), and the inventory data table (INVTABLE
). For mobile sources only, Spcmat uses the mobile codes file (MCODES
) and the mobile emission processes file (MEPROC
).
Spcmat outputs a mole-based speciation matrix file (ASMAT_L
, MSMAT_L
, or PSMAT_L
) and a mass-based speciation matrix file (ASMAT_S
, MSMAT_S
, or PSMAT_S
). The program also outputs a speciation supplemental file (ASSUP
, MSSUP
, or PSSUP
) and a log file (LOGFILE
).
File Name | Format | Description |
---|---|---|
[AREA|MOBL|PNTS] |
SMOKE map | Intermediate inventory file produced by Smkinven |
GSCNV (optional)
|
ASCII | Pollutant conversion file, used only if POLLUTANT_CONVERSION = Y
|
GSPRO |
ASCII | Speciation profiles |
GSREF |
ASCII | Speciation cross-reference file |
INVTABLE |
ASCII | Inventory data table listing activity and pollutant names |
MCODES (optional)
|
ASCII | Mobile codes file for converting road class numbers and vehicle type numbers to SMOKE internal standard |
MEPROC (optional)
|
ASCII | Mobile emission processes file |
POLLUTANT_CONVERSION
: [default: N]
Defines whether the program uses the pollutant-to-pollutant conversion file.
Y: Use conversion file
N: Do not use conversion file
REPORT_DEFAULTS
: See description in Section 6.2.3.2, “Input Environment Variables”
SMK_SOURCE
: See description in Section 6.2.3.2, “Input Environment Variables”
