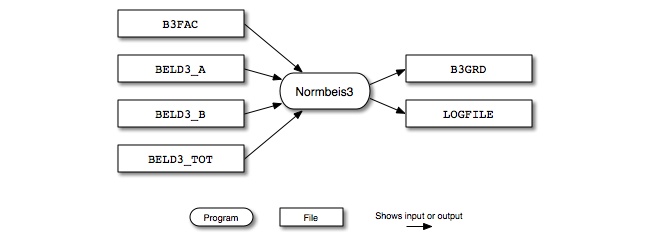

Figure 6.11, “Normbeis3 input and output files” shows the input and output files for the Normbeis3 program. The input files are the emission factors file (B3FAC
), the gridded land use file for the first 120 land use types (BELD3_A
), the gridded land use types for the next 110 types (BELD3_B
), and the land use totals data file (BELD3_TOT
).
Normbeis3 outputs a gridded, normalized biogenic emissions file (B3GRD
) and a log file (LOGFILE
).
Gridded land use data can be created using GIS software, such as ArcInfo. Another tool that can be used to generate gridded
land use data is the SMOKE Tool in Models-3 (see Models-3 documentation). The typical database used to generate the BELD3_A
, BELD3_B
, and BELD3_TOT
files is the BELD3. Future versions of SMOKE may include a method for creating land use files for use with Normbeis3.
File Name | Format | Description |
---|---|---|
B3FAC |
ASCII | Emission factors file |
BELD3_A |
I/O API NetCDF | Gridded land use (first 120 land use types) |
BELD3_B |
I/O API NetCDF | Gridded land use (last 110 land use types) |
BELD3_TOT |
I/O API NetCDF | Land use totals data |
