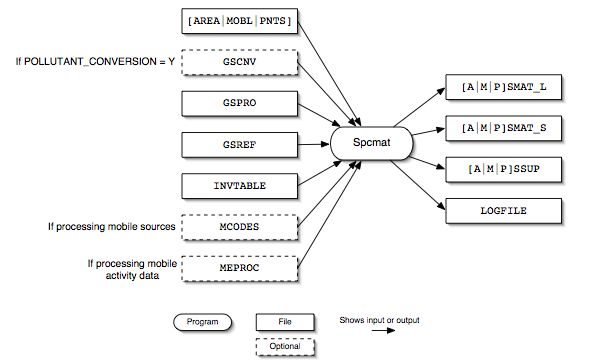

Figure 6.21, “Spcmat input and output files” shows the input and output files for the Spcmat program. The input files include the inventory file output from Smkinven (AREA, MOBL, or PNTS), the optional pollutant conversion file (GSCNV), the speciation profiles file (GSPRO), the speciation cross-reference file (GSREF), and the inventory data table (INVTABLE). For mobile sources only, Spcmat uses the mobile codes file (MCODES) and the mobile emission processes file (MEPROC).
Spcmat outputs a mole-based speciation matrix file (ASMAT_L, MSMAT_L, or PSMAT_L) and a mass-based speciation matrix file (ASMAT_S, MSMAT_S, or PSMAT_S). The program also outputs a speciation supplemental file (ASSUP, MSSUP, or PSSUP) and a log file (LOGFILE).
| File Name | Format | Description |
|---|---|---|
| [AREA|MOBL|PNTS] | SMOKE map | Intermediate inventory file produced by Smkinven |
| GSCNV (optional) | ASCII | Pollutant conversion file, used only if POLLUTANT_CONVERSION = Y |
| GSPRO | ASCII | Speciation profiles |
| GSREF | ASCII | Speciation cross-reference file |
| INVTABLE | ASCII | Inventory data table listing activity and pollutant names |
| MCODES (optional) | ASCII | Mobile codes file for converting road class numbers and vehicle type numbers to SMOKE internal standard |
| MEPROC (optional) | ASCII | Mobile emission processes file |
-
POLLUTANT_CONVERSION: [default: N]
Defines whether the program uses the pollutant-to-pollutant conversion file.
-
Y: Use conversion file
-
N: Do not use conversion file
-
-
REPORT_DEFAULTS: See description in Section 6.2.3.2, “Input Environment Variables”
-
SMK_SOURCE: See description in Section 6.2.3.2, “Input Environment Variables”
